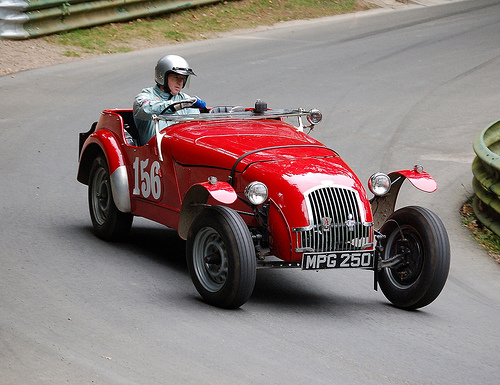

1946 Allard J1

• BODY / EXTERIOR DESIGN / DIMENSIONS

Body Type:Roadster 2 doors / 2 seats
Weight:1020 Kg
Length:3683 mm
Height:1500 mm
Wheelbase:2438 mm
Front Track:1422 mm
Rear Track:1321 mm
Ground Clearance:n/a
Fuel Capacity:n/a

• ENGINE SPECIFICATIONS

Engine location:front
Engine alignment:longitudinal
Drive Wheels:Rear wheel drive
Steering:n/a
Fuel Supply System:1 Fo carb
Max Power:86HP (63 kW) @ 3800 rpm
Max Torque:203Nm @ 1500 rpm
CO2 Emissions:n/a
Engine Coolant:water
Displacement:3622 cc
Bore:77 mm
Stroke:95 mm
Cam Design:OHV - Overhead Valves
Cylinders:8 IN V
Valves per cylinder:2
Total Valves:16
Compression Ratio:6.12:1
Aspiration:Normal

• CHASSIS / BRAKES / SUSPENSIONS

Front Brakes:n/a
Rear Brakes:n/a
Standard Wheels:n/a
Standard Tyres:n/a
Suspension Front:I.TL.
Suspension Rear:LA.TL.

• TRANSMISSION

Transmission:manual
Number of gears:3

• PERFORMANCE

Acceleration 0-100 Km/h:
Acceleration 80-120 Km/h:
Top Speed:n/a

• FUEL CONSUMPTION

City:8.9 l/100km
Road:5.4 l/100km
Mixt:6.7 l/100km
